Specifications:

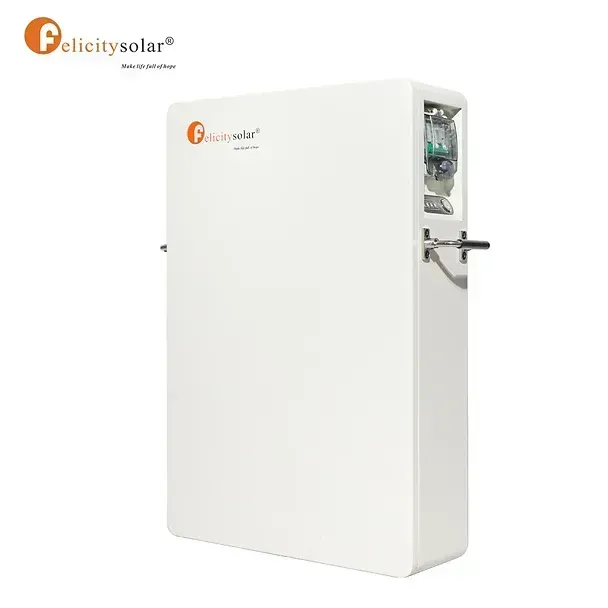

• Model: LPBA48100-OL
• Usable Capacity: 5.12KWH
• Nominal Voltage：51,2V
• Voltage Range：48V-57.6V
• Recommend Charge Cut-off voltage: 57.6V
• Recommend Discharge Cut-off voltage: 48V
• Max Charge&Discharge Current：100A
• Recommend Charge&Discharge Current：50A
• Max Output Power：5KW
• Recommend Output Power：2.5KW
• DOD: 95%
• Cycle Life：≥6000, ＠25℃, @80% DOD
• Module Connection: 1～12 in parallel
• Communication: CAN&RS485
• Net Weight ：48.5KG
• Gross Weight：61KG
• Product Dimension：665*440*185MM
• Package Dimension：760*535*345MM
• Warranty：10 Years
